MIXER 4

Regular price €29,00 EUR
Regular price Sale price €29,00 EUR
Sale Sold out
Tax included.

MIXER 4 is a 4 channels mixer but with extra features.

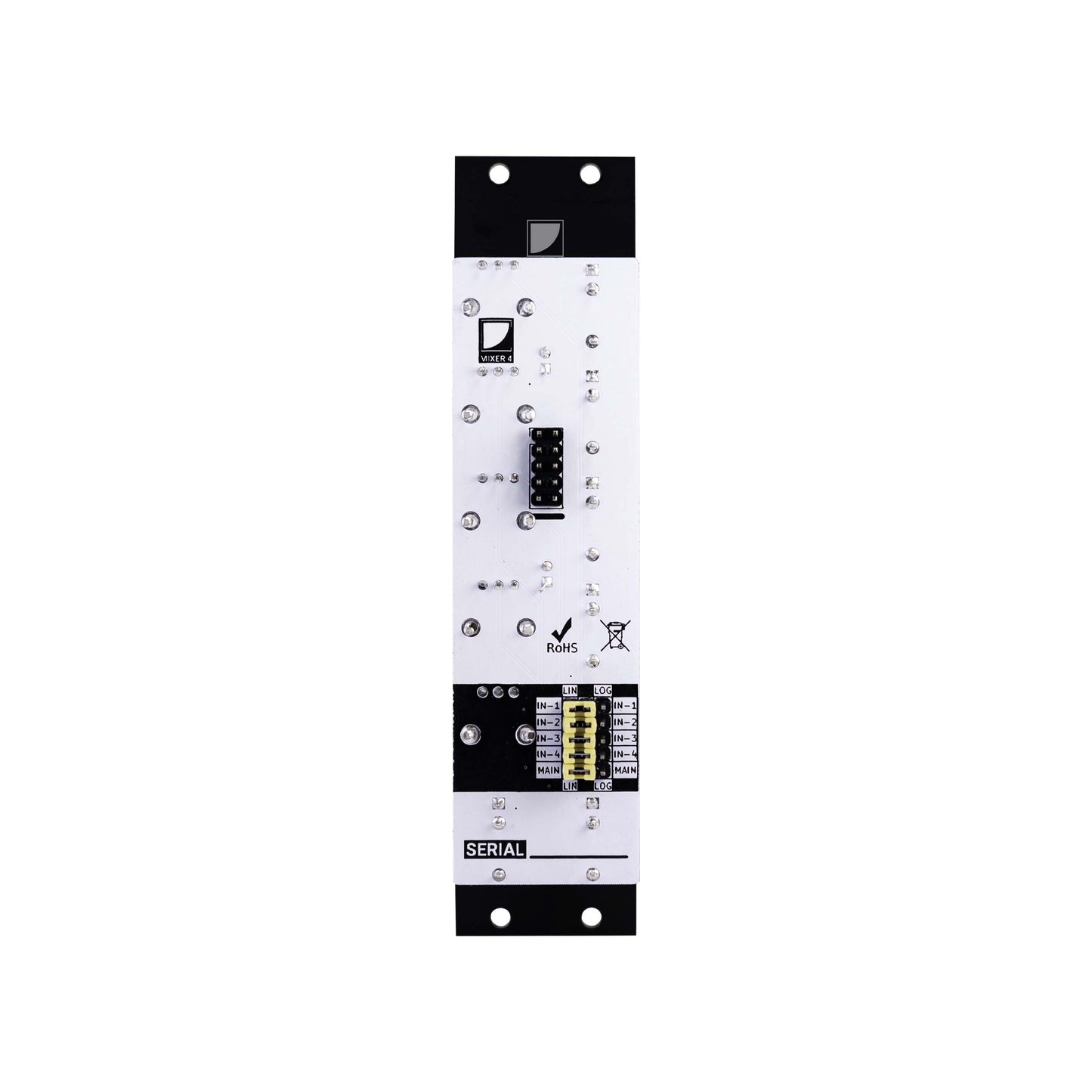

Each channels can be set individually as linear or logarithmic. Linear curve are more suitable for CV signals wherease logarithmic is use for audio signals.
MIXER 4 also feature a master attenator to control master volume. Master attenuator can also be set as linear or logarithmic. Finally MIXER 4 feature two output a mix output and a inverted copy of the mix output.

Now you don't have to mind about linear or logarithmic mixers. Just get MIXER 4 and configure it following you needs.

Specs

Panel Width
6HP

Module Depth
20mm (skiff friendly)

Power Consumption
+12V : 4mA
-12V : 4mA
+5V : 0mA

Files

DIY infos

SMD difficulty 1/3
Recommended for beginners who would like to try SMD soldering.

THT difficulty 1/3
Recommended for beginners who would like to try THT soldering.
