PIPE
Couldn't load pickup availability

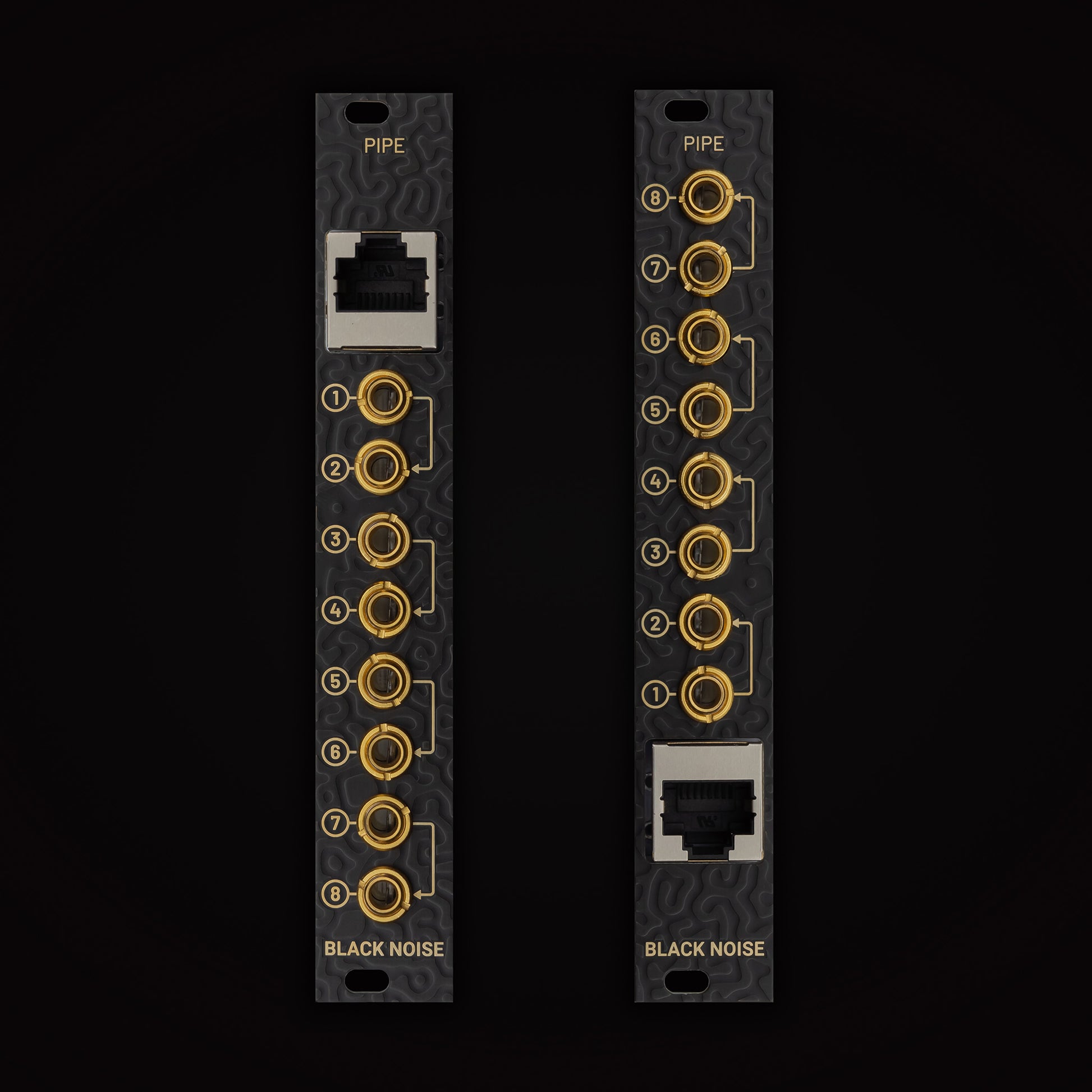

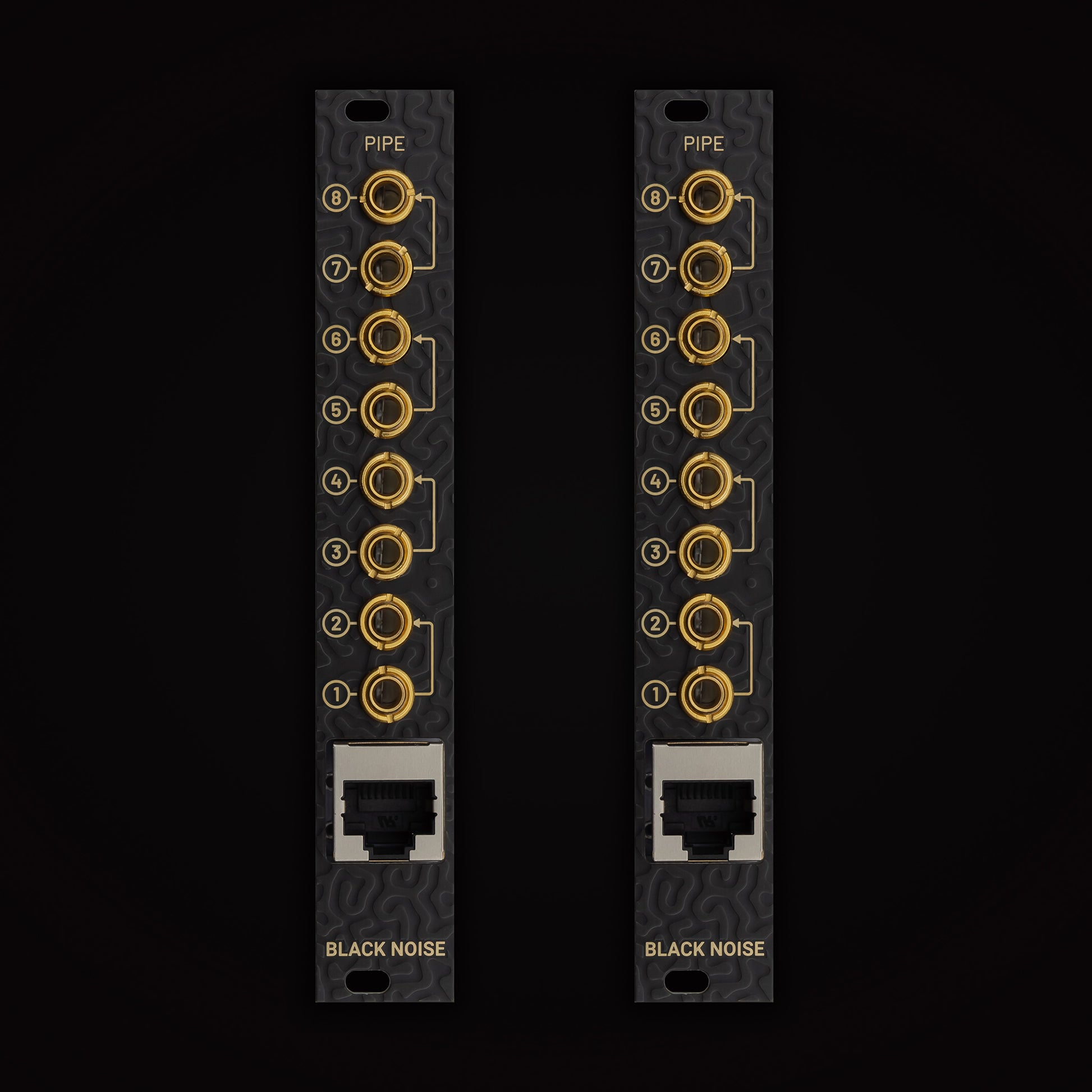

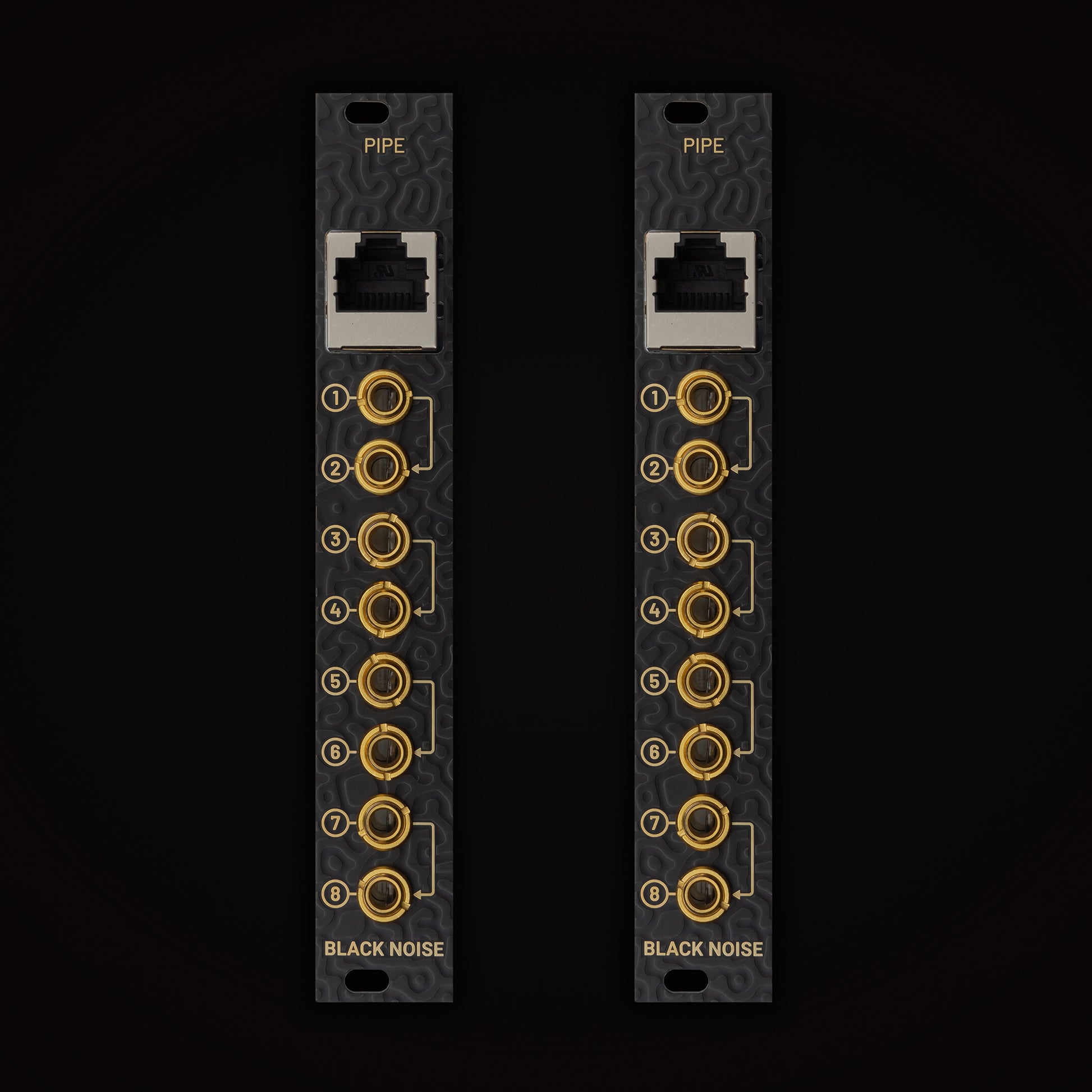

Now introducing PIPE in our sleek Black & Gold theme, featuring a reversible faceplate. Feel like installing your PIPE upside down? No worries – just unscrew the 8 jnuts, flip the faceplate, and put everything back together and Voila! You can now use your PIPE with the connector facing down!
With the ability to connect up to 8 inputs or outputs via an ethernet cable, the PIPE-S makes it easy to connect multiple case together or avoid any cable mess accros a case. This makes it the perfect solution for simply setting up your eurorack system in the studio or for a live gig.
But that's not all, PIPE can also be used as a multiple passive 3 section. Want to transmit precise signals like pitch CV and want to avoid crosstalk induced by passive multiples? No worries you can easily deactivate this function for each section from the connector at the back of the module.
The best part is that PIPE is completely passive which means you can place it anywhere, it doesn't draw any current from your power supply but that also makes it perhaps the simplest DIY module!
PIPE modules are sold by pair.
If you want a PIPE (3U) and a PIPE-S (1U) select the option:
"Build & Tested - 1x PIPE-S + 1x PIPE".
This option is only available for PIPE/PIPE-S built and tested.
The ethernet cable is not supplied with the modules
Regarding Ethernet cable
We recommand shielded Straight-Thru RJ45 cable.
Using un-shielded or Crossover cable won't damage your modules but you may experience noise and or mixed channels.
Due to is passive nature we also recommand to avoid long ethernet cables.
Specs
Specs
Panel Width
4HP (per module)
Module Depth
20mm (skiff friendly)
Power Consumption
PIPE if fully passive it do no require power
DIY infos
DIY infos
SMD difficulty
Pipe has no SMD
THT difficulty 1/3
Recommended for beginners who would like to try THT soldering.
