PIPE - S

Regular price €109,00 EUR
Regular price Sale price €109,00 EUR
Sale Sold out
Tax included.

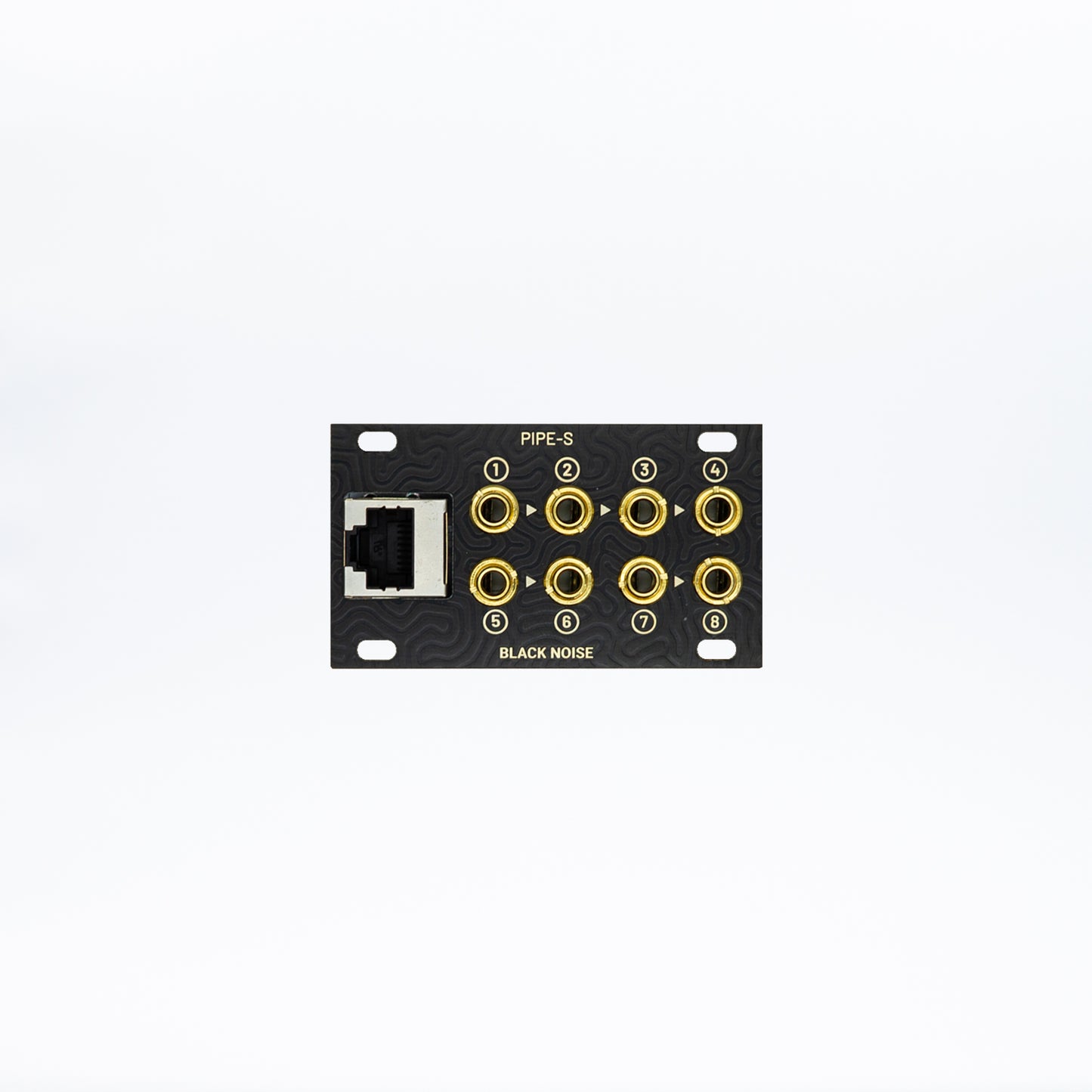

With the ability to connect up to 8 inputs or outputs via an ethernet cable, the PIPE-S makes it easy to connect multiple case together or avoid any cable mess accros a case. This makes it the perfect solution for simply setting up your eurorack system in the studio or for a live gig.

But that's not all, PIPE-S can also be used as a multiple passive 3 section. Want to transmit precise signals like pitch CV and want to avoid crosstalk induced by passive multiples? No worries you can easily deactivate this function for each section from the connector at the back of the module.

The best part is that PIPE-S is completely passive which means you can place it anywhere, it doesn't draw any current from your power supply but that also makes it perhaps the simplest DIY module!

PIPE-S modules are sold by pair.

If you want a PIPE (3U) and a PIPE-S (1U) select the option:
"Build & Tested - 1x PIPE-S + 1x PIPE".
This option is only available for PIPE/PIPE-S built and tested.

The ethernet cable is not supplied with the modules



Regarding Ethernet cable
We recommand shielded Straight-Thru RJ45 cable.
Using un-shielded or Crossover cable won't damage your modules but  you may experience noise and or mixed channels.
Due to is passive nature we also recommand to avoid long ethernet cables.

Specs

Format
1U - Intellijel

Panel Width
14HP

Module Depth
20mm (skiff friendly)

Power Consumption
PIPE-S if fully passive it do no require power

DIY infos

SMD difficulty
PIPE-S has no SMD

THT difficulty 1/3
Recommended for beginners who would like to try THT soldering.

FAQ

Do you ship internationally?
Yes we do! We offer free shipping worldwide with no minimum purchase!

Are the power ribbon cable supplied with the module?
Power cables are included with built modules and kits. For PCB & Panel and PCB (SMD pre soldered) & Panel options, the power cable can be ordered separately from this link.

Are the screws supplied with the module?
No we don't. There is no standard for screws some use M2.5 other use M3 and some prefer knurlies. We have found that most of our customers do not used the supplied screws. So in accordance with our commitments to reduce waste we no longer provide screws with our modules. If you need advice to supply yourself with screws, please contact us.

Are the modules easy to solder?
To help you to choose projects that meet your solder skills we've create difficulty scale you can find it under the DIY infos section on each product page.
Before to choose you can also consult the ibom in File section to evaluate by yourself the difficulty.

Regarding SMD soldering the scale have 3 levels :
- Level 1 is recommended for beginners who would like to try SMD soldering.
- Level 2 is recommended to people who already have successfully build few SMD modules.
- Level 3 is recommended for people comfortable with SMD. It may contain small and/or tight components and, due to the density of components, designators may-be not present on silkscreen.

Regarding THT soldering the scale have 3 levels :
- Level 1 is recommended for beginners who would like to try THT soldering.
- Level 2 is recommended to people who already have successfully build few THT modules.
- Level 3 is recommended for people comfortable with THT job. It may contain small and/or tight components and, due to the density of components, designators may-be not present on silkscreen.

What is A-Stock and B-Stock ?
A-Stock products are products free of any cosmetic defects.

B-Stock products are products that show cosmetic defects.
All B-Stock products are 100% functional and have the same warranty that A-Stock Products.
During manufacturing process cosmetic flaws can occur, in accordance with our commitments to reduce waste we offer those product at reduced price to avoid throwing them.

Can you repair my BLACK NOISE module ?
If your product is within the two year guarantee then there will be no cost for your repair. If your product is no longer under waranty, we will charge for the cost of the parts and a small fee to cover the time spent on the repair. Please use the contact section of our site, explaining the problems you are having and the purchase date.

Any other question ?
if you do not find the answer to your question in this section, you can contact us using the following Form.
