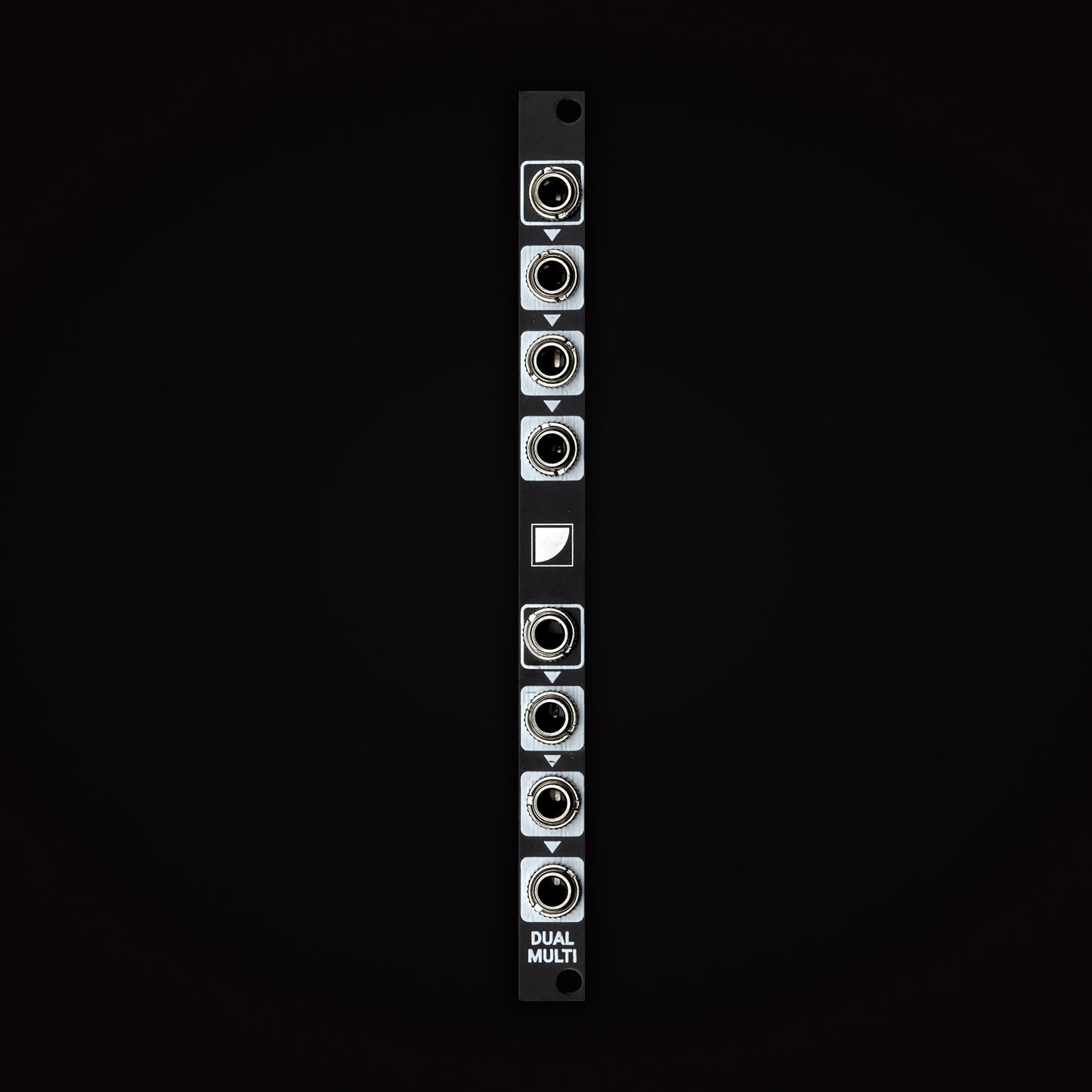

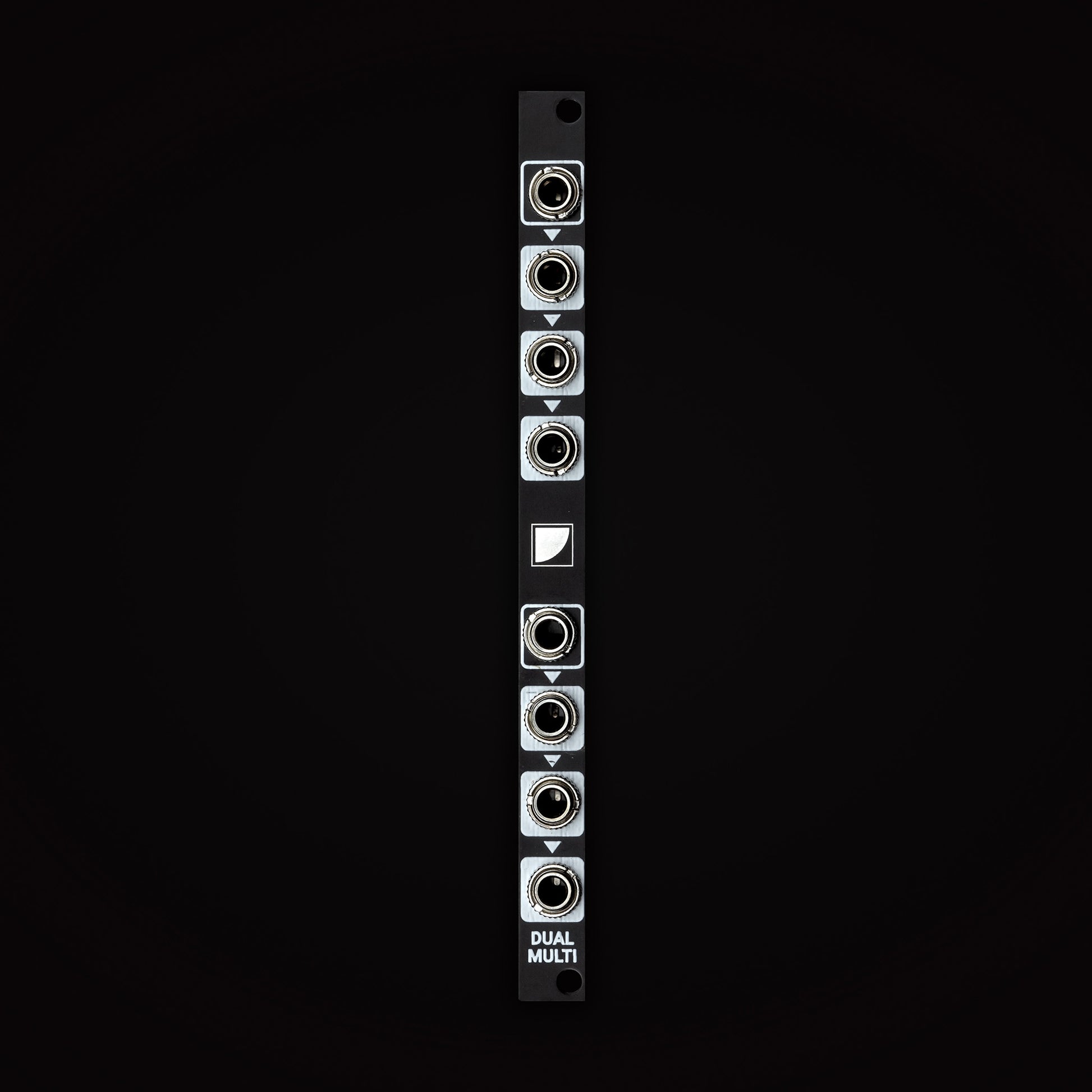

DUAL MULTI

Panel Width
2HP

Module Depth
20mm (skiff friendly)

Power Consumption
+12V : 11mA
-12V : 11mA
+5V : 0mA

Manual

BOM

SMD difficulty 0/3
All SMD components are already soldered.

THT difficulty 1/3
Recommended for beginners who would like to try THT soldering.
