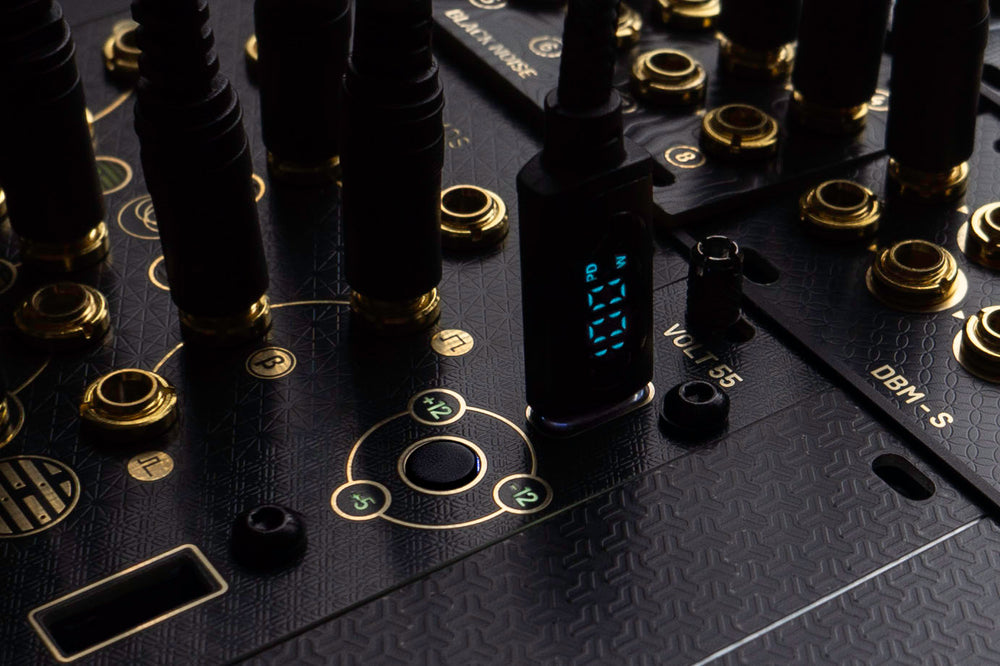

VOLT 55
Reloaded
Now delivering up to 100W of raw power, the new VOLT55 range sets a new standard for Eurorack power supplies. Ultra-compact, with unmatched stability and isolation, all powered from a single USB-C connection.

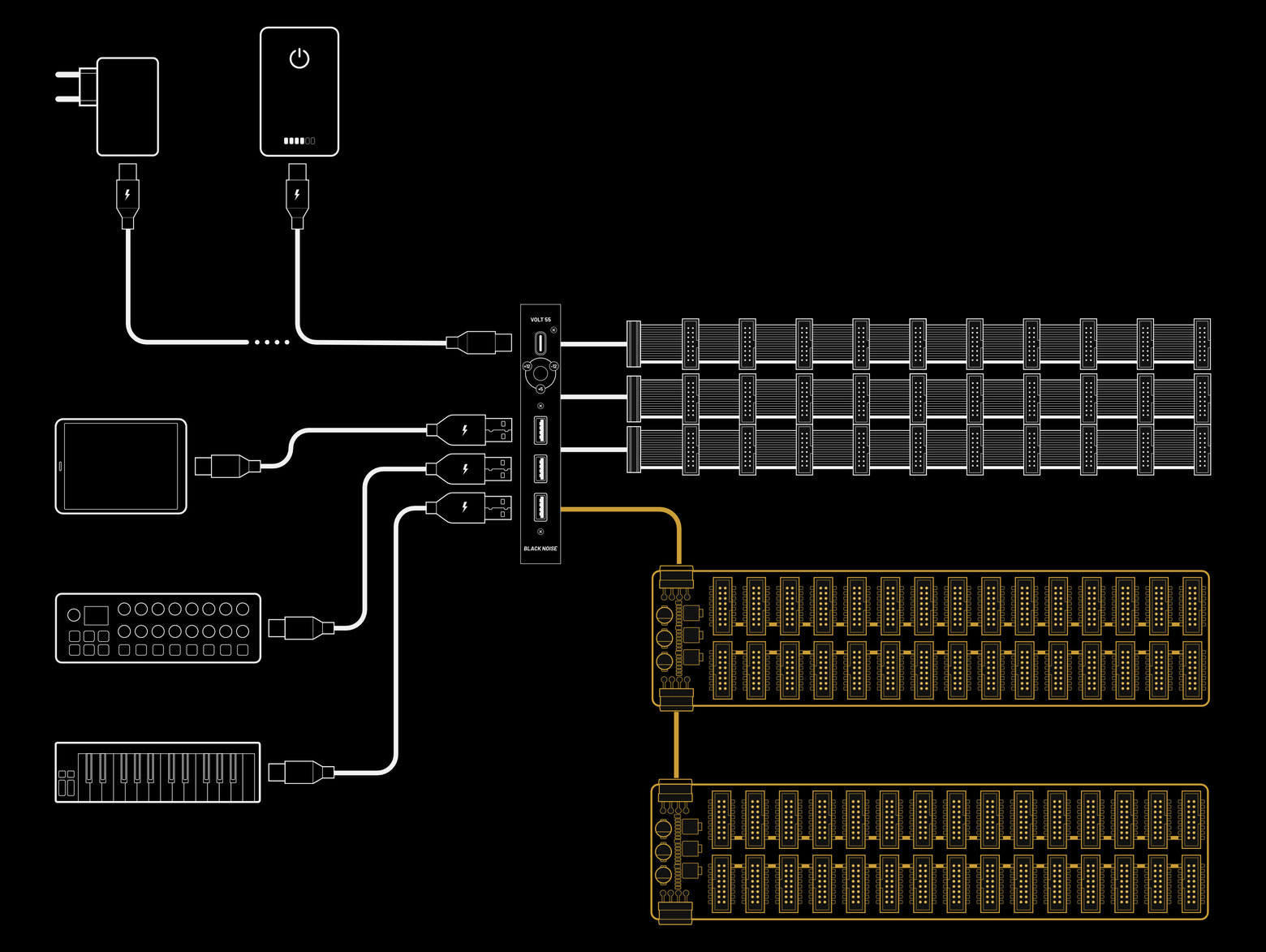

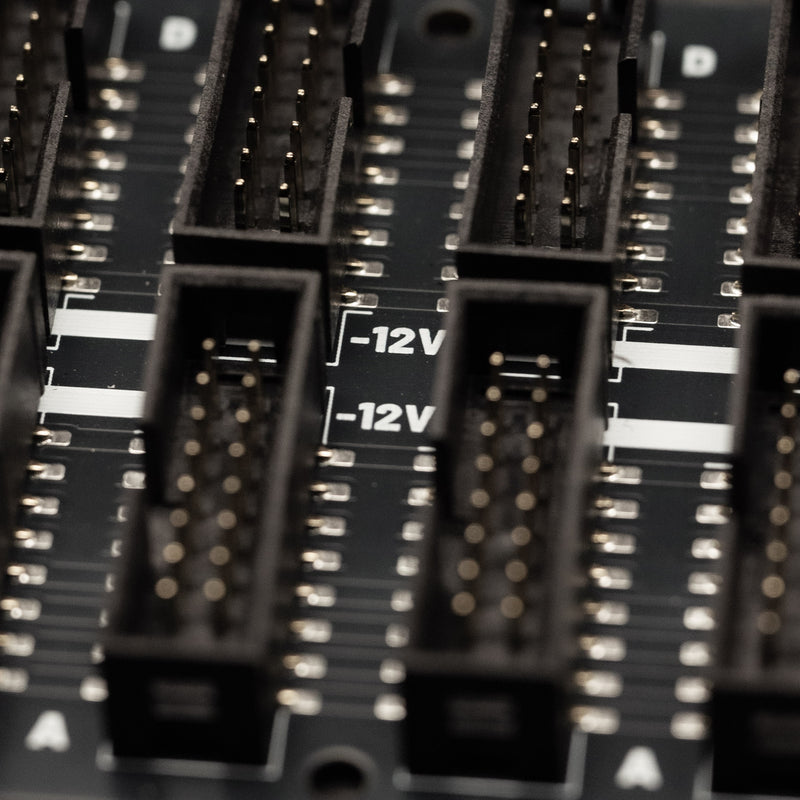

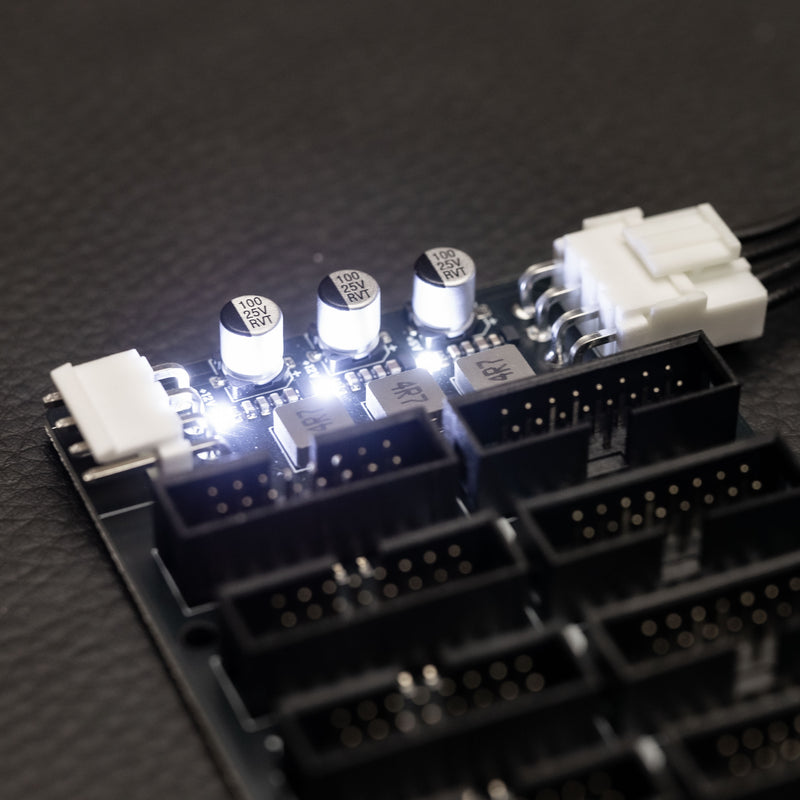

VOLT Shield
Noise Killer

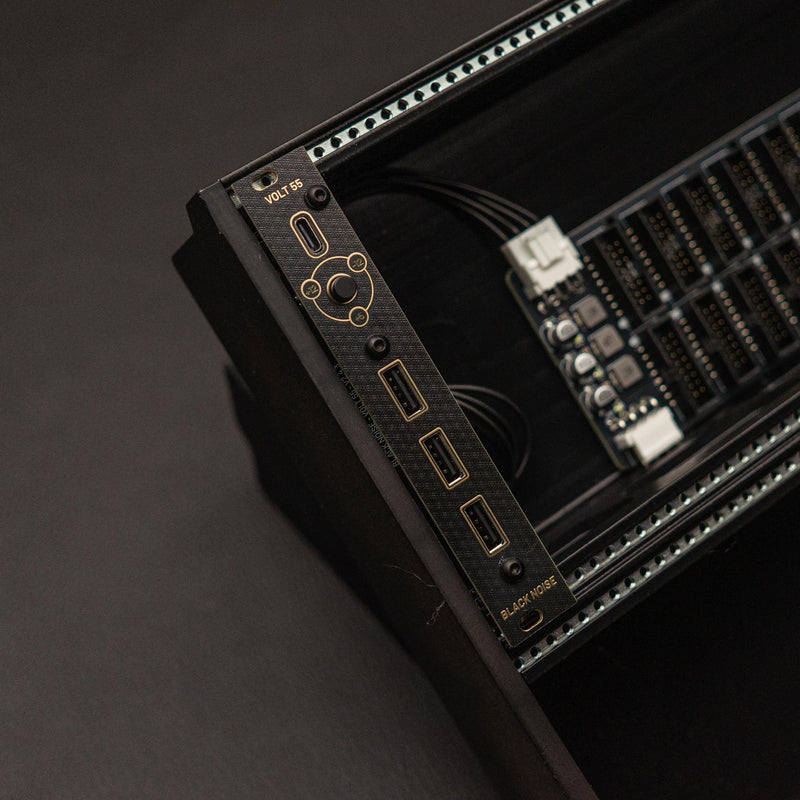

VOLT Shield, our new filtered busboard, prevents digital noise from bleeding into your analog signal path. Paired with VOLT55’s exceptional isolation, it delivers a truly noise-free Eurorack system.
VOLT Power Assistant
Our VOLT Power Assistant is here to help you configure your VOLT ecosystem. Simply enter your system’s power consumption below and get a custom recommendation. It also gives you insight into PSU Load, battery life estimates, and helps you choose the right accessories.
Your Case
Enter your eurorack case power requirements below.
The +12V rail exceeds the maximum capacity of the VOLT 55. As with any power supply, we recommend keeping usage below 80% of the rated output to ensure reliability and prevent damage to the PSU or connected modules. The maximum recommended is 4 000 mA.
The −12V rail exceeds the maximum capacity of the VOLT 55. As with any power supply, we recommend keeping usage below 80% of the rated output to ensure reliability and prevent damage to the PSU or connected modules. The maximum recommended is 2 000 mA.
The +5V rail exceeds the maximum capacity of the VOLT 55. As with any power supply, we recommend keeping usage below 80% of the rated output to ensure reliability and prevent damage to the PSU or connected modules. The maximum recommended is 1 600 mA.
How to use this configurator

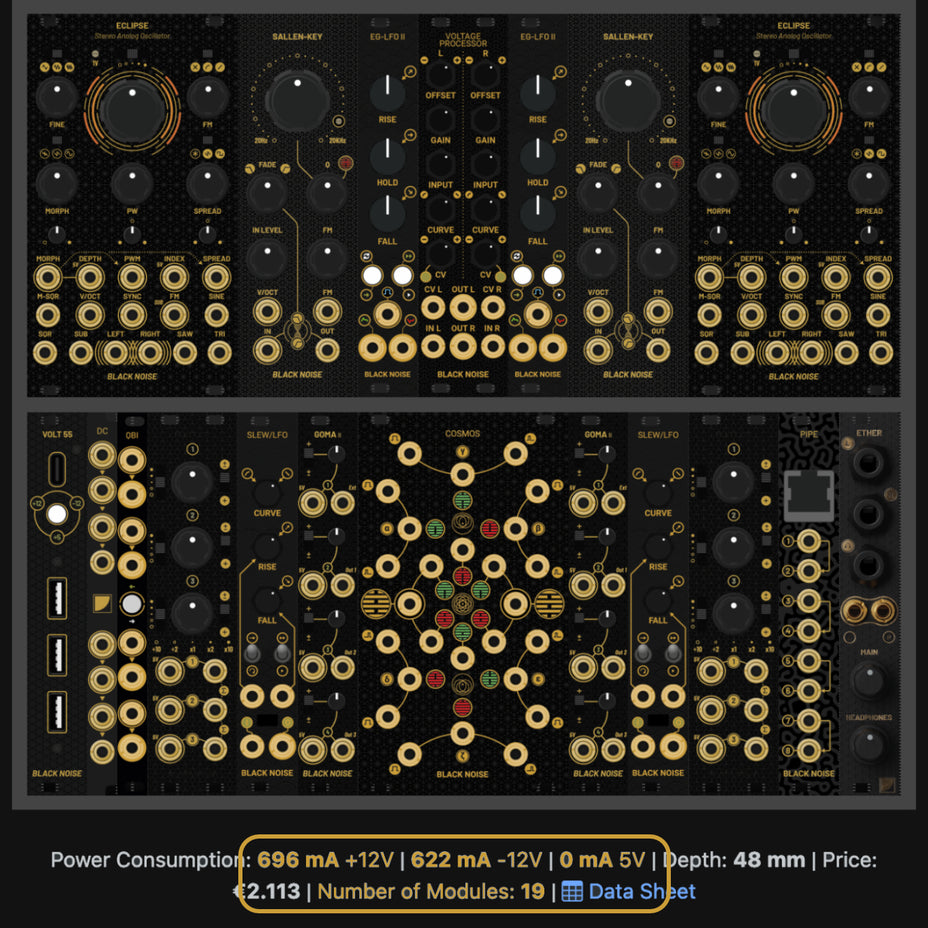

To find the right VOLT for your system, enter the power requirements for each rail in your case. If your rack is on ModularGrid, this information is available at the bottom of the page, as shown in the illustration above.

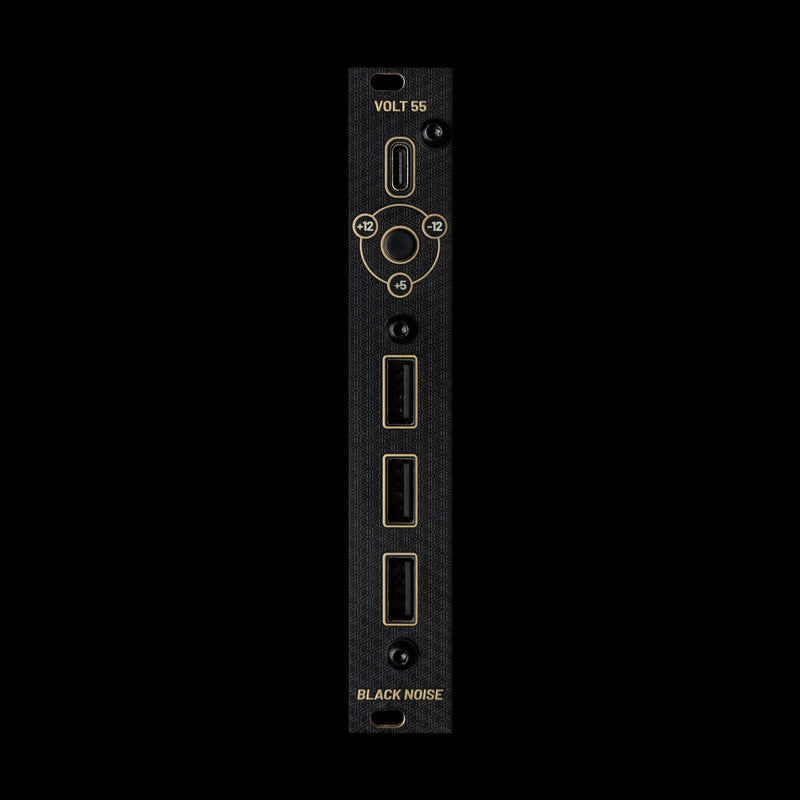

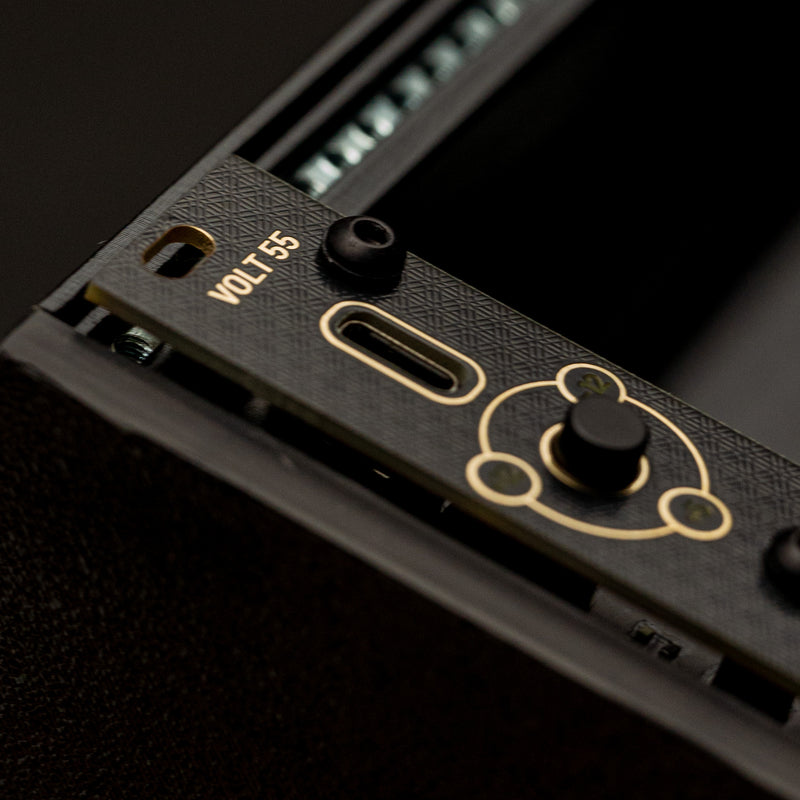

VOLT55
Couldn't load pickup availability
Specs
Specs

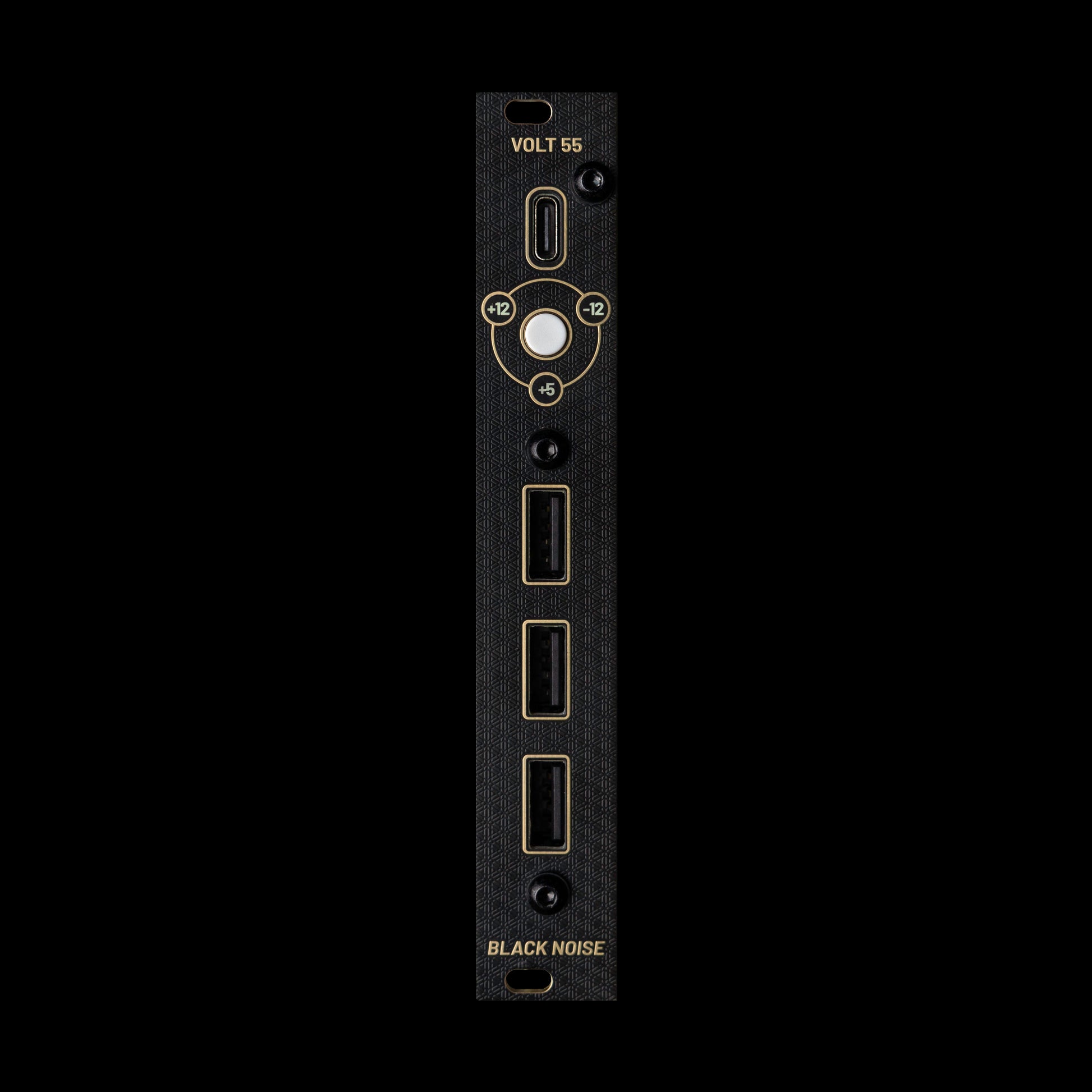

VOLT55-S
+12V :2500mA
-12V :1250mA
+5V :2000mA
VOLT55-M
+12V :4000mA
-12V :2500mA
+5V :2000mA
VOLT55-L
+12V 5000mA
-12V :2500mA
+5V :2000mA

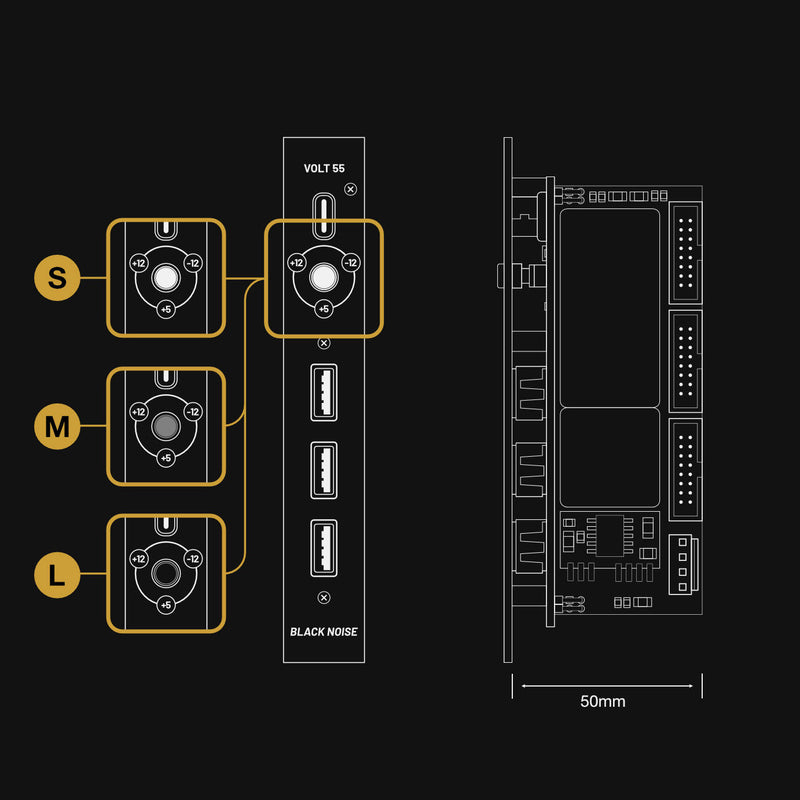

VOLT55 (All versions)
Panel Width : 4HP
Depth : 50mm

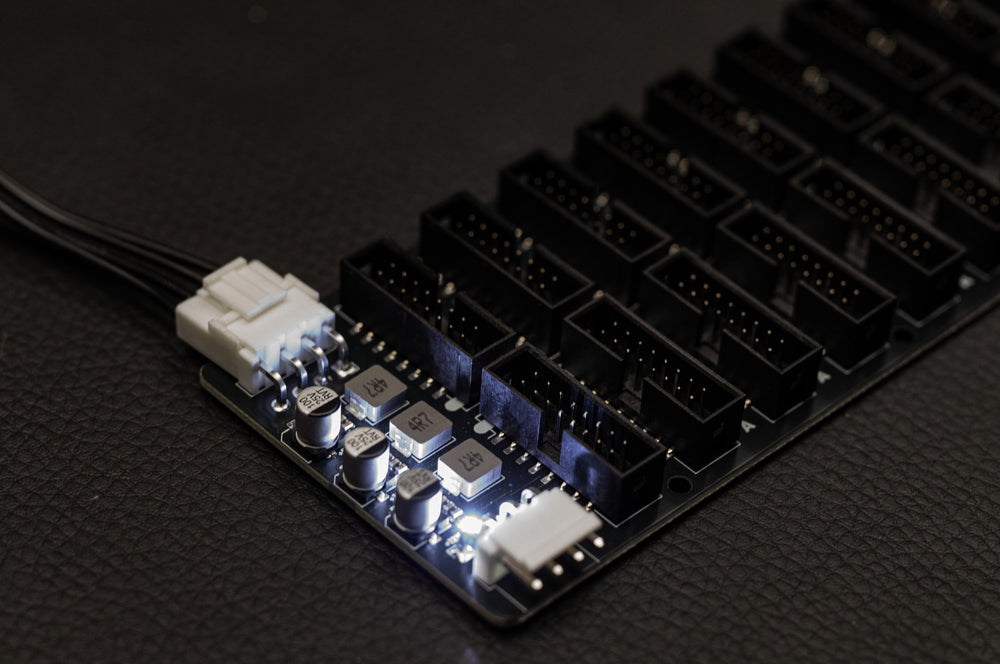

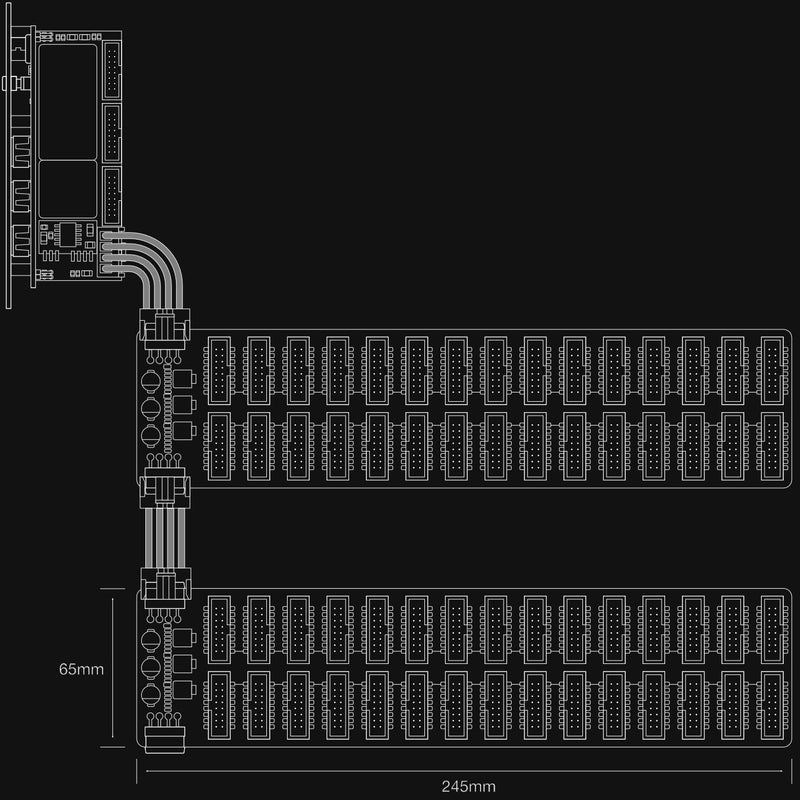

VOLT Shield
28 filtered module connectors
Dimensions : 245*65mm
Height : 12mm
Included: connection cable, 6 adhesive feet
Files
Files
Manual (available soon)
Safety & Quickstart
DIY infos
DIY infos
SMD difficulty 0/3
All SMD components are already soldered.
THT difficulty 1/3
Recommended to beginners who would like to try THT soldering.
Product Safety
Product Safety
General Information:
The completed module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with the correct polarity.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Installation and Use
• Mount securely in a Eurorack case using compatible screws.
•Use only the included or manufacturer-recommended power cable.
•Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
Contact Information
Black Noise Modular
14 Rue Montmeroux
21120
Gemeaux
FRANCE
contact@blacknoisemodular.com
Information regarding DIY Kits:
This kit is intended for adult users experienced in electronics and modular synthesis. Assembly, including soldering, is required. Proper testing and installation are essential to ensure safe and functional operation.
Assembly Requirements
• Soldering skills are required to complete the module.
• Ensure a clean, well-lit, and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it in your Eurorack system. When the unit malfunctions due to incorrect assembly, the entire Eurorack system might be damaged. It's a good idea to test it in a separate case with only that single module.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Modulargrid
Modulargrid
FAQ
FAQ
Do you ship internationally?
Yes, we do!
Are the power ribbon cables supplied with the module?
Power cables are included only with built modules and kits. They are not included with PCB & Panel and PCB (SMD pre-soldered) & Panel options.
Are the screws supplied with the module?
No, we don’t. There is no standard for screws—some use M2.5, others use M3, and some prefer knurlies. We have found that most of our customers do not use the supplied screws. So, in accordance with our commitments to reduce waste, we no longer provide screws with our modules. If you need advice on where to source screws, please contact us.
Are the modules easy to solder?
To help you choose projects that match your soldering skills, we’ve created a difficulty scale. You can find it under the DIY infos section on each product page. Before choosing, you can also consult the iBOM in the Files section to evaluate the difficulty yourself.
Regarding SMD soldering, the scale has 3 levels:
-
Level 1 is recommended for beginners who would like to try SMD soldering.
-
Level 2 is recommended for people who have already successfully built a few SMD modules.
-
Level 3 is recommended for people comfortable with SMD. It may contain small and/or tight components, and due to the density of components, designators may not be present on the silkscreen.
Regarding THT soldering, the scale has 3 levels:
-
Level 1 is recommended for beginners who would like to try THT soldering.
-
Level 2 is recommended for people who have already successfully built a few THT modules.
-
Level 3 is recommended for people comfortable with THT soldering. It may contain small and/or tight components, and due to the density of components, designators may not be present on the silkscreen.
Can you repair my BLACK NOISE module?
If your product is within the two-year guarantee, there will be no cost for your repair. If your product is no longer under warranty, we will charge for the cost of the parts and a small fee to cover the time spent on the repair. Please use the contact section of our site, explaining the problems you are having and the purchase date.
