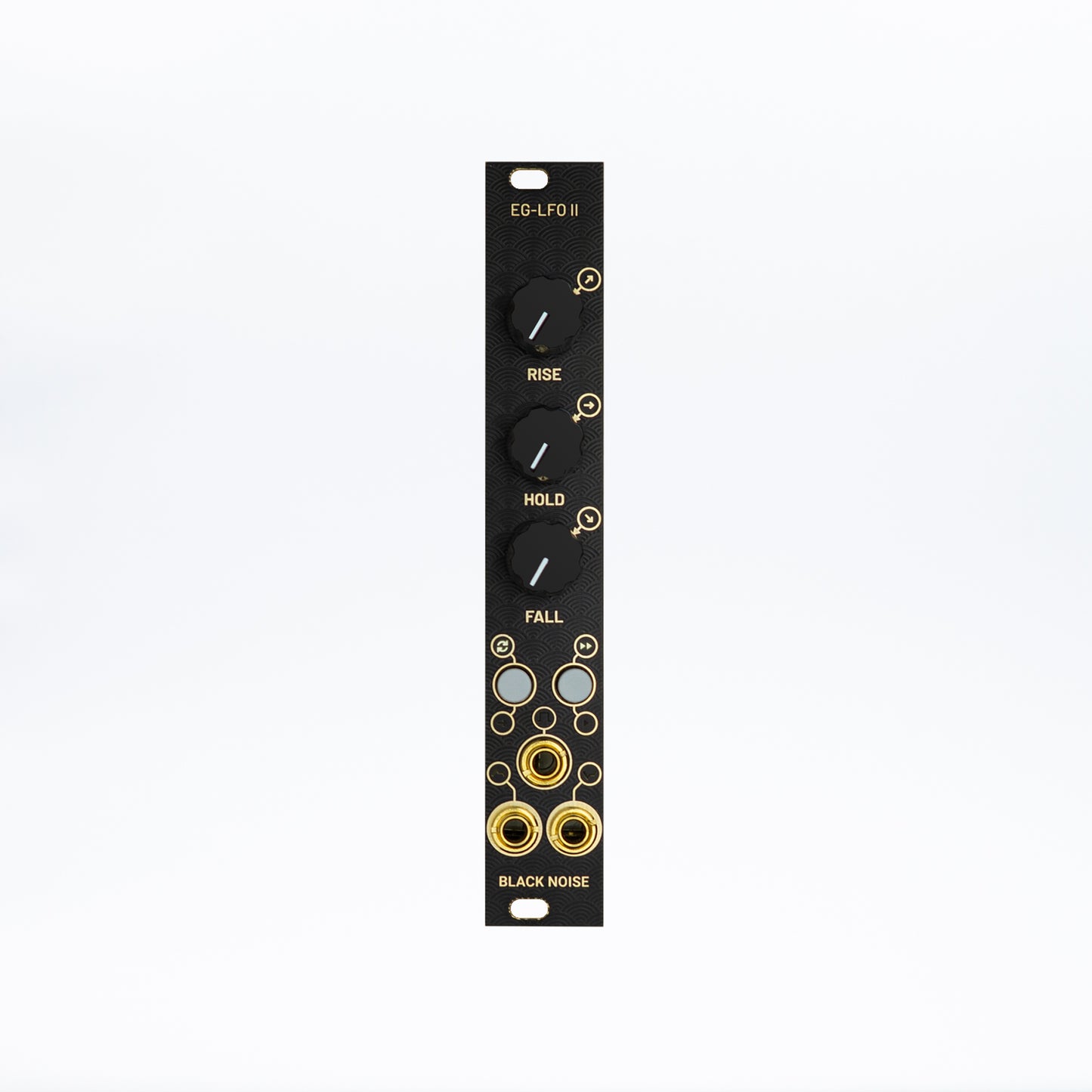

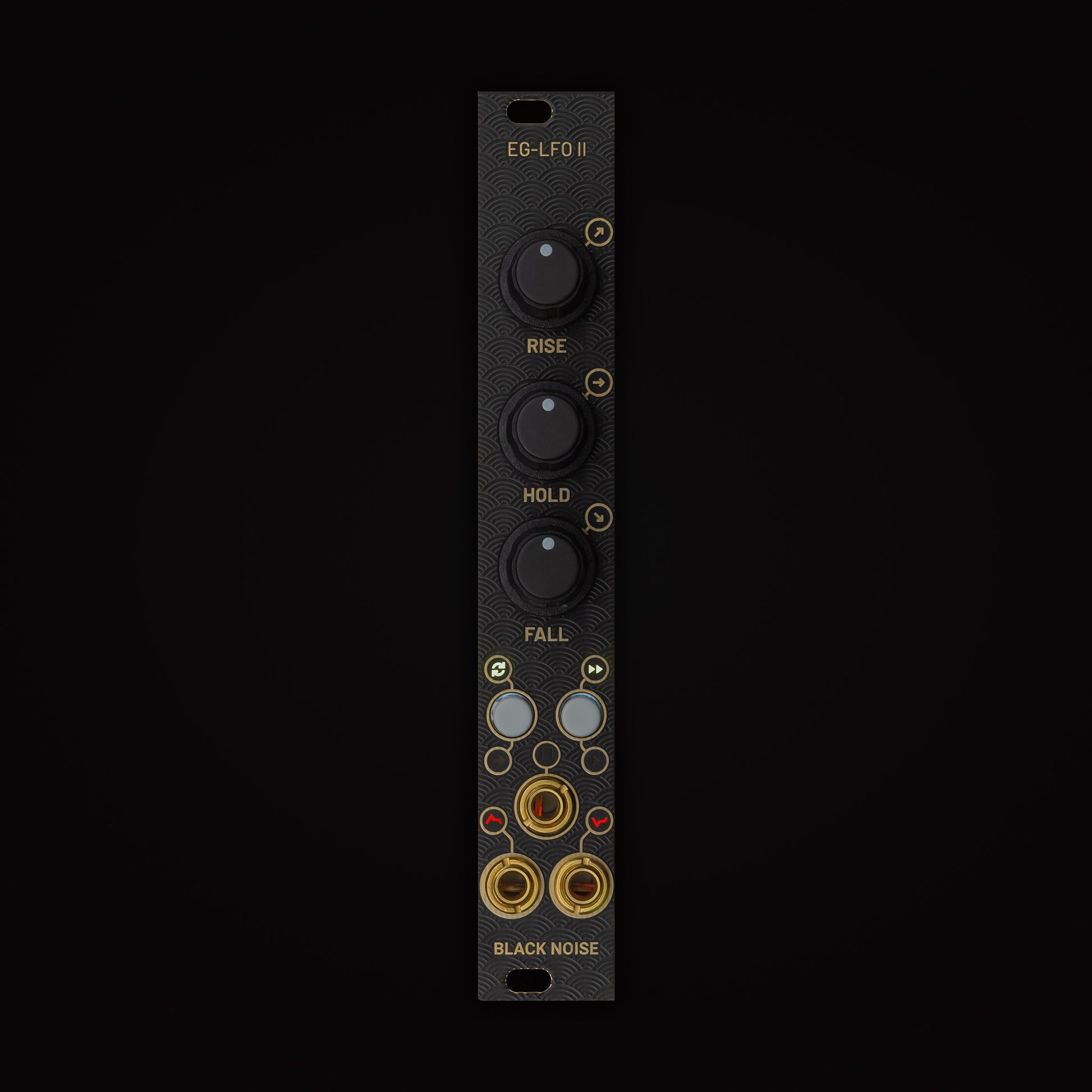

EG-LFO II

Regular price €99,00 EUR
Regular price Sale price €99,00 EUR
Sale Sold out
Tax included.
As its name implie, EG LFO is composed of an Envelope Generator and an LFO.

The envelope generator offer control over Rise time, the Hold and the Fall time. Two range of envelope are available, slow and fast. You can also modify the  speed off the fast mode using the speed expander on the back of the module.
On outputs you will find the envelope output and a inverted copy of the envelope.

EG LFO II also feature a LFO mode, speed can be control using rise and fall control. Two speed mode are available, LFO range in slow mode and audio range in fast mode. You can modify the  speed off the fast mode using the speed expander on the back of the module.
On output you will find the LFO output and a inverted copy of the LFO.

Specs

Panel Width
4HP

Module Depth
20mm (skiff friendly)

Power Consumption
+12V : 22mA
-12V : 17mA
+5V : 0mA

Files

Manual

iBOM

Build Instructions (Available very soon)

DIY infos

SMD difficulty 2/3
Recommended to people who already have successfully build few SMD modules.

THT difficulty 2/3
Recommended to people who already have successfully build few THT modules.

FAQ

Do you ship internationally?
Yes we do! We offer free shipping worldwide with no minimum purchase!

Are the power ribbon cable supplied with the module?
Power cables are included with built modules and kits. For PCB & Panel and PCB (SMD pre soldered) & Panel options, the power cable can be ordered separately from this link.

Are the screws supplied with the module?
No we don't. There is no standard for screws some use M2.5 other use M3 and some prefer knurlies. We have found that most of our customers do not used the supplied screws. So in accordance with our commitments to reduce waste we no longer provide screws with our modules. If you need advice to supply yourself with screws, please contact us.

Are the modules easy to solder?
To help you to choose projects that meet your solder skills we've create difficulty scale you can find it under the DIY infos section on each product page.
Before to choose you can also consult the ibom in File section to evaluate by yourself the difficulty.

Regarding SMD soldering the scale have 3 levels :
- Level 1 is recommended for beginners who would like to try SMD soldering.
- Level 2 is recommended to people who already have successfully build few SMD modules.
- Level 3 is recommended for people comfortable with SMD. It may contain small and/or tight components and, due to the density of components, designators may-be not present on silkscreen.

Regarding THT soldering the scale have 3 levels :
- Level 1 is recommended for beginners who would like to try THT soldering.
- Level 2 is recommended to people who already have successfully build few THT modules.
- Level 3 is recommended for people comfortable with THT job. It may contain small and/or tight components and, due to the density of components, designators may-be not present on silkscreen.

What is A-Stock and B-Stock ?
A-Stock products are products free of any cosmetic defects.

B-Stock products are products that show cosmetic defects.
All B-Stock products are 100% functional and have the same warranty that A-Stock Products.
During manufacturing process cosmetic flaws can occur, in accordance with our commitments to reduce waste we offer those product at reduced price to avoid throwing them.

Can you repair my BLACK NOISE module ?
If your product is within the two year guarantee then there will be no cost for your repair. If your product is no longer under waranty, we will charge for the cost of the parts and a small fee to cover the time spent on the repair. Please use the contact section of our site, explaining the problems you are having and the purchase date.

Any other question ?
if you do not find the answer to your question in this section, you can contact us using the following Form.
