GOMA

Regular price €22,00 EUR
Regular price €22,00 EUR Sale price €22,00 EUR
Sale Sold out

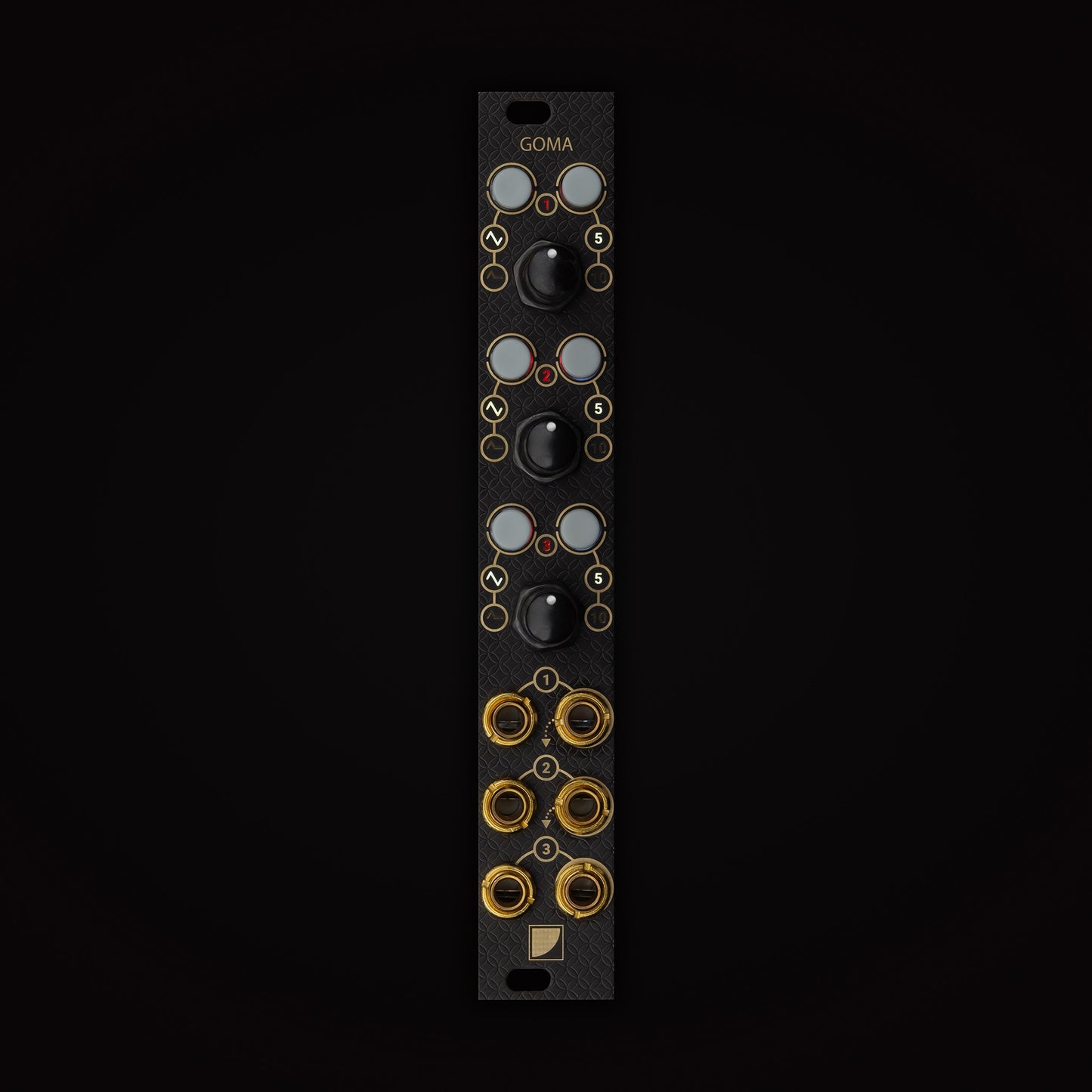

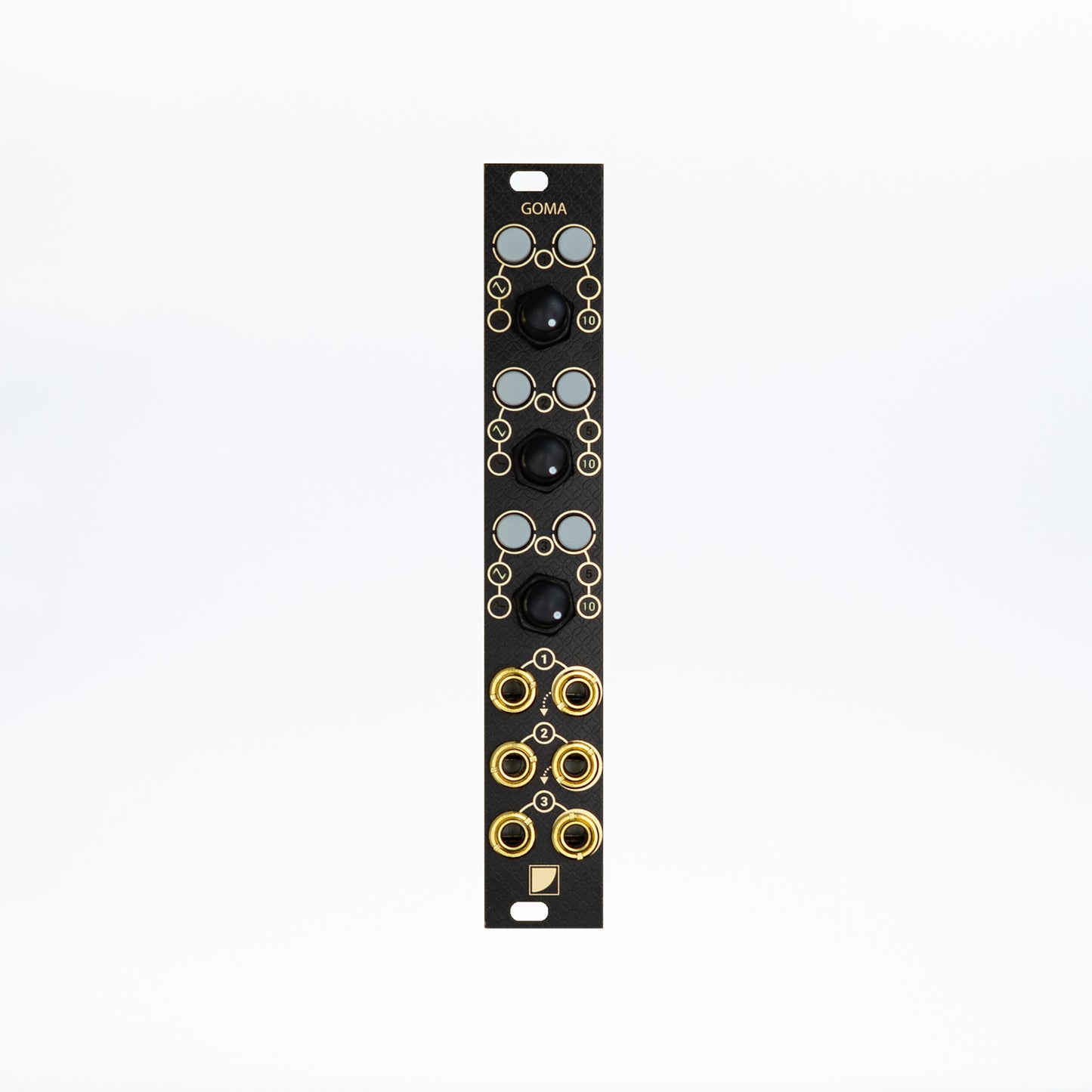

GOMA stand for Generator, Offset, Mixer, Attenuverter.

The idea behind GOMA was to make an improved version of the classic 3 Attenuator/Attenuverter modules.

We wanted to design high-end but small module so it could fit in any case. We want it to be ergonomic and easy to use despite is size. But we also wanted to pack as much features as possible to make of it a "swiss knife module".

The result is GOMA a 4HP modules made of high-end components for max precision (low tolerance resistors, low noise/distortion opamps).
Each channel can be set as Attenuator or Attenuverter using the dedicate switch.
Each channel can be normalised to +5 or +10V using the dedicate switch.
We've taken great care in the design and choice of switches to make sure to avoid switching by mistake when tweaking the knobs.
We've add LEDs to make it easy to use in dark environment.
We've add feedback LED on each channel so you can spot at anytime the state of the output.

And we add which is maybe the best feature, daisy chain !
You can easily daisy chain multiples GOMA module to create virtually infinite mixer/offset generator.

GOMA is 100% analog so the switches keep there states even when your rack is off.

GOMA is so flexible that we use in all our patchs, we are very please about it and we hope you'll like as much as we are.

Specs

Panel Width
4HP

Module Depth
20mm (skiff friendly)

Power Consumption
+12V : 33mA
-12V : 33mA
+5V : 0mA

Files

DIY infos

SMD difficulty 3/3
Recommended
for people comfortable with SMD. It may contain small and/or tight
components and, due to the density of components, designators may-be not present on silkscreen.

THT difficulty 3/3
Recommended
for people comfortable with THT job. It may contain small and/or tight
components and, due to the density of components, designators may-be not present on silkscreen.

FAQ

What is A-Stock and B-Stock ?
A-Stock products are products free of any cosmetic defects.

B-Stock products are products that show cosmetic defects.
All B-Stock products are 100% functional and have the same warranty that A-Stock Products.
During manufacturing process cosmetic flaws can occur, in accordance with our commitments to reduce waste we offer those product at reduced price to avoid throwing them.

Are the power ribbon cable supplied with the module?
You can choose if you want or not ribbon cable using the designated field. If you choose "yes" your product will be send with a ribbon cable of 20cm is you need longer cable simply choose "Without" and use the following link to get the cable of desired length.

Are the screws supplied with the module?
No we don't. There is no standard for screws some use M2.5 other use M3 and some prefer knurlies. We have found that most of our customers do not used the supplied screws. So in accordance with our commitments to reduce waste we no longer provide screws with our modules. If you need advice to supply yourself with screws, please contact us.

Do you ship internationally?
Yes we do! Add your address at checkout to see how much shipping will cost to your destination.

Are the modules easy to solder?
To help you to choose projects that meet your solder skills we've create difficulty scale you can find it under the DIY infos section on each product page.
Before to choose you can also consult the ibom in File section to evaluate by yourself the difficulty.

Regarding SMD soldering the scale have 3 levels :
- Level 1 is recommended for beginners who would like to try SMD soldering.
- Level 2 is recommended to people who already have successfully build few SMD modules.
- Level 3 is recommended for people comfortable with SMD. It may contain small and/or tight components and, due to the density of components, designators may-be not present on silkscreen.

Regarding THT soldering the scale have 3 levels :
- Level 1 is recommended for beginners who would like to try THT soldering.
- Level 2 is recommended to people who already have successfully build few THT modules.
- Level 3 is recommended for people comfortable with THT job. It may contain small and/or tight components and, due to the density of components, designators may-be not present on silkscreen.
